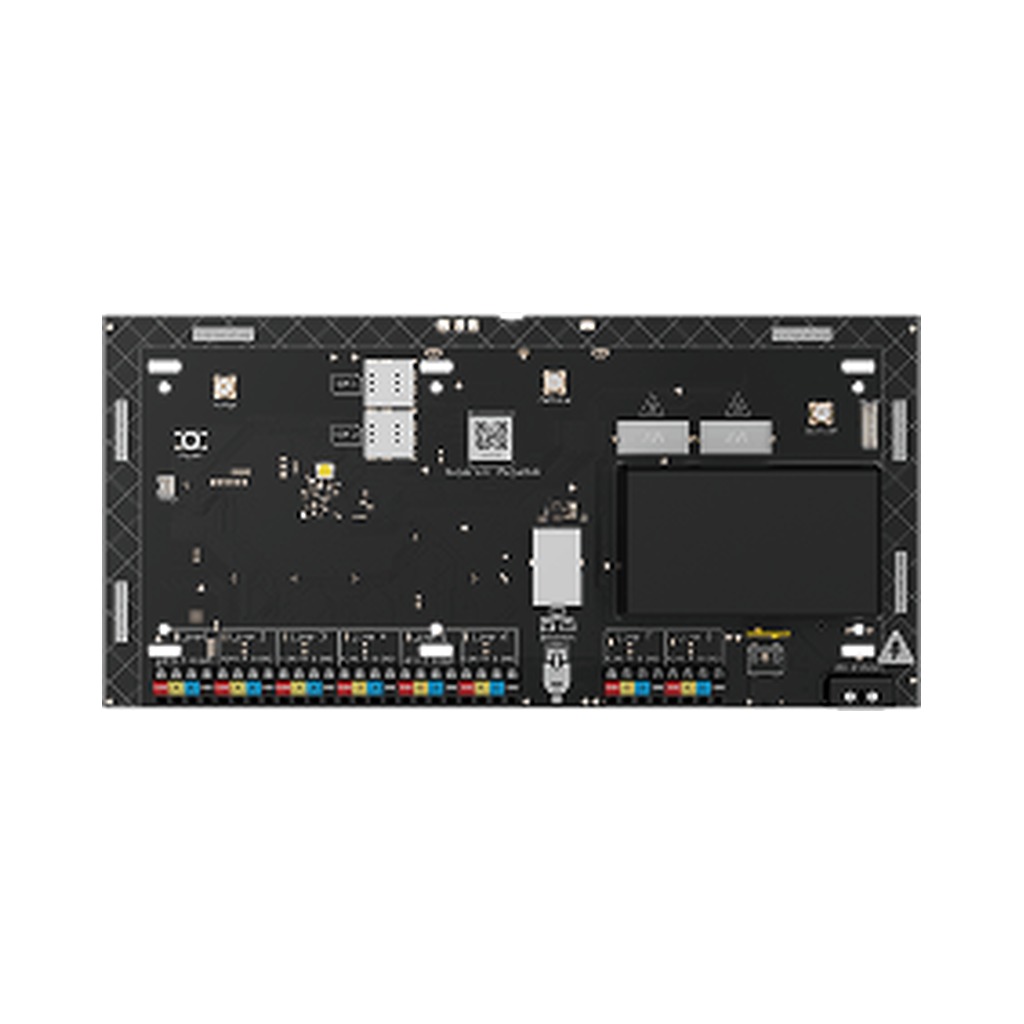

Ajax Superior MegaHub (without casing) — Board version of Superior MegaHub for installing inside a compatible Ajax casing on large hybrid projects.
Key features
- Up to 999 Fibra and Jeweller devices
- 8 Fibra lines with ring, beam or tree topology
- Ethernet, Wi-Fi and two SIM cards (2G/LTE)
- Up to 1,000 users and 100 security groups
- Photo verification up to 960 × 720 px
- Board fits Case D (430) or Case E (395)
Specifications
| Product line | Superior · Fibra wired + Jeweller wireless |
|---|
| Communication | Ethernet, Wi-Fi, 2 × micro SIM (2G/LTE) |
|---|
| Capacity | 999 devices, 1,000 users, 100 groups, 100 scenarios |
|---|
| Radio | Superior Jeweller, Wings; 8 Fibra lines |
|---|
| Range | Radio up to 2,500 m; Fibra line up to 2,000 m |
|---|
| Backup battery | Up to 18 Ah (not included), up to 60 h |
|---|
| Installation | Board for Ajax Case D (430) or E (395), 130 × 270 × 60 mm |
|---|
Ajax article 141802.366.NC · Code AJ-SUP-MEGAHUB-NOCASE
