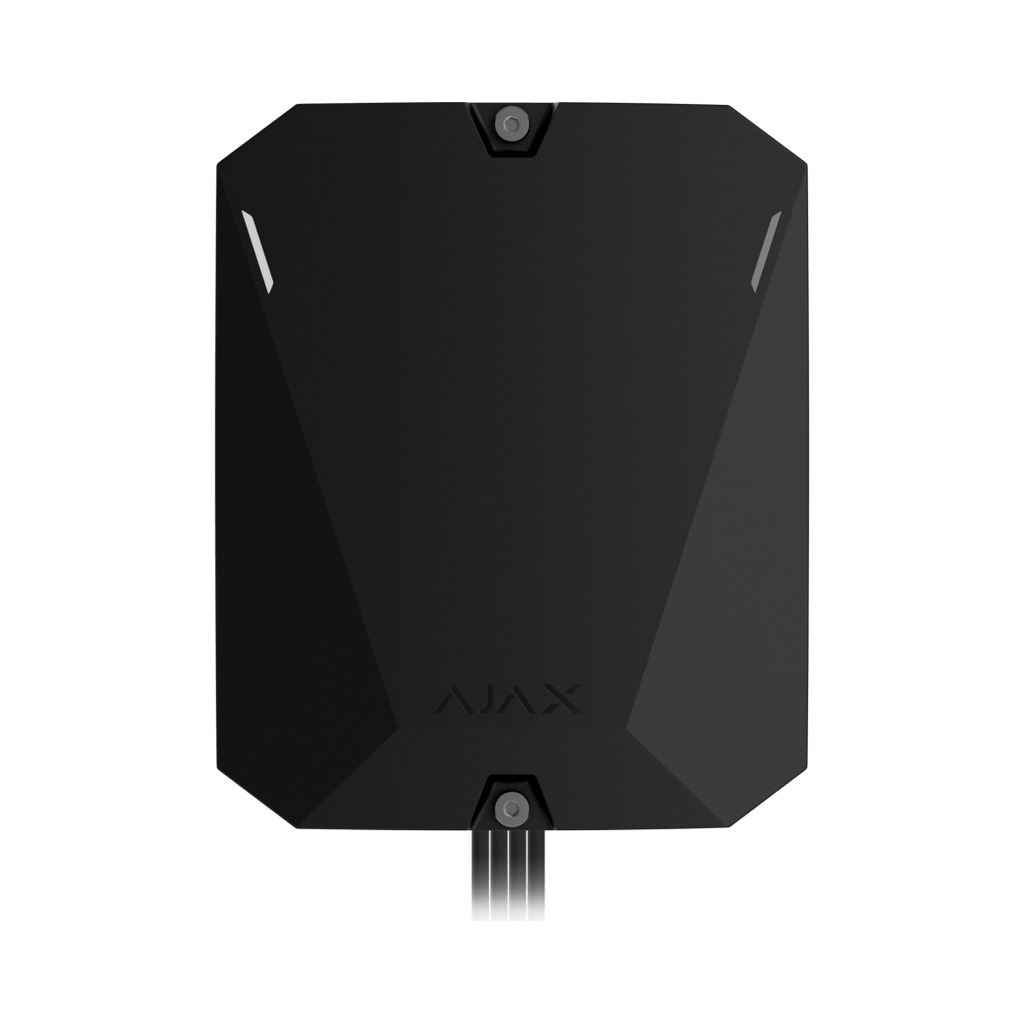

Ajax Superior Hub Hybrid 2 — Hybrid control panel for medium to large sites, combining wired Fibra lines and wireless Jeweller devices.
Key features
- Up to 250 Fibra and Jeweller devices
- 8 Fibra lines with ring, beam or tree topology
- Ethernet plus two SIM cards (2G/3G/LTE)
- Photo verification over Wings
- Up to 60 hours on a 7 Ah backup battery
- Casing with tamper protection, IP30/IK06
Specifications
| Product line | Superior · Fibra wired + Jeweller wireless |
|---|
| Communication | Ethernet, 2 × micro SIM (2G/3G/LTE) |
|---|
| Capacity | 250 devices, 200 users, 25 groups, 64 scenarios |
|---|
| Radio | Superior Jeweller, Wings; 8 Fibra lines |
|---|
| Range | Radio up to 3,500 m; Fibra line up to 2,000 m |
|---|
| Backup battery | 12 V up to 7 Ah (not included), up to 60 h |
|---|
| Installation | Indoor, 100–240 V~ mains, 197 × 240 × 100 mm |
|---|
| Colour | Black |
|---|
Ajax article 142514.369.BL1 · Code AJ-SUP-HUB-HYB-2-BL
