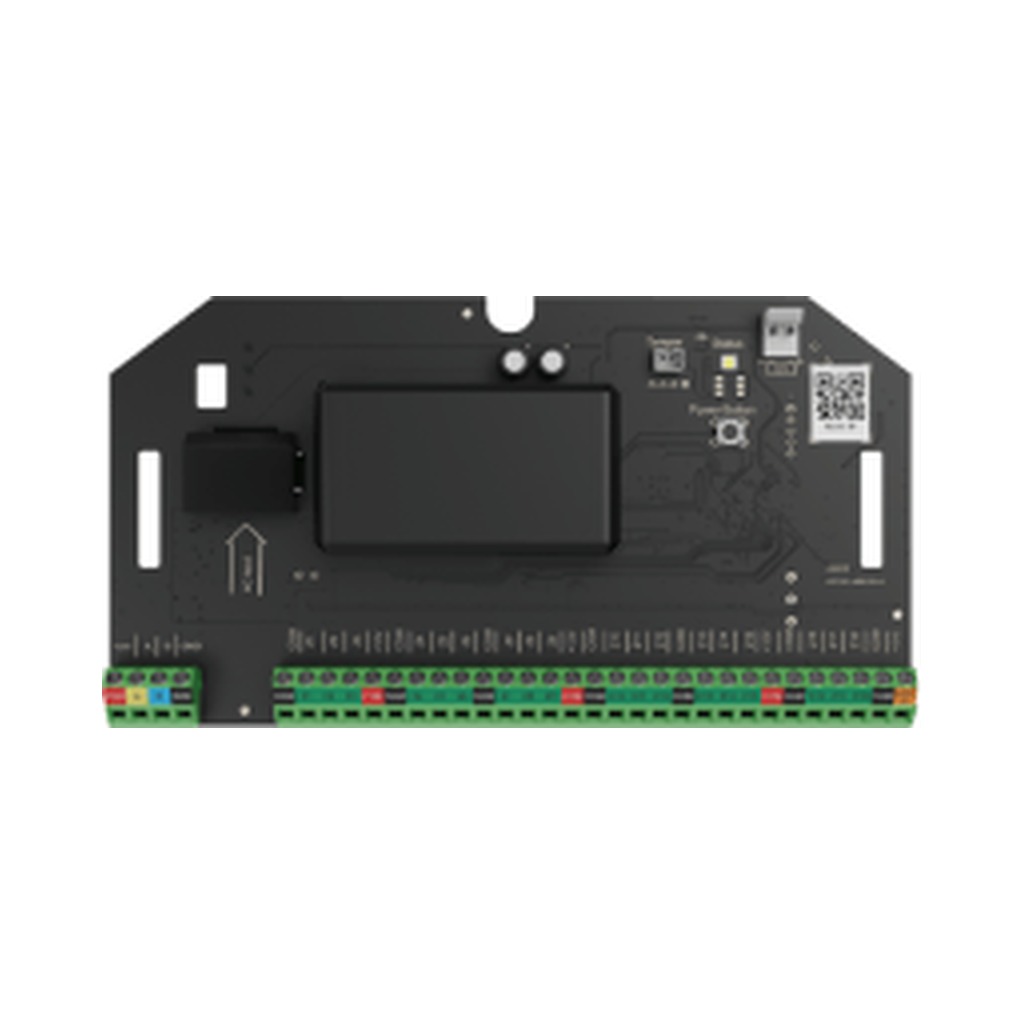

Ajax Superior MultiTransmitter Fibra (without casing) — Mains-powered wired module for connecting up to 18 third-party wired zones to an Ajax system.
Key features
- 18 wired zones
- Supports NC, NO, EOL, 2EOL and 3EOL
- 15 selectable event types
- Mains powered with 12 V backup battery up to 7 Ah
- Powers connected detectors up to 1 A
Specifications
| Product line | Superior · Fibra wired |
|---|
| Function | Integration of up to 18 wired zones |
|---|
| Communication | Fibra (4-core cable) |
|---|
| Range | Fibra line up to 2,000 m; zone wiring up to 400 m |
|---|
| Power | 100–240 V~ mains; 12 V battery backup up to 7 Ah |
|---|
| Installation | Indoor, board for Ajax Case D |
|---|
Requires an Ajax hub. Code AJ-SUP-FIB-MTRANS-NOCASE
