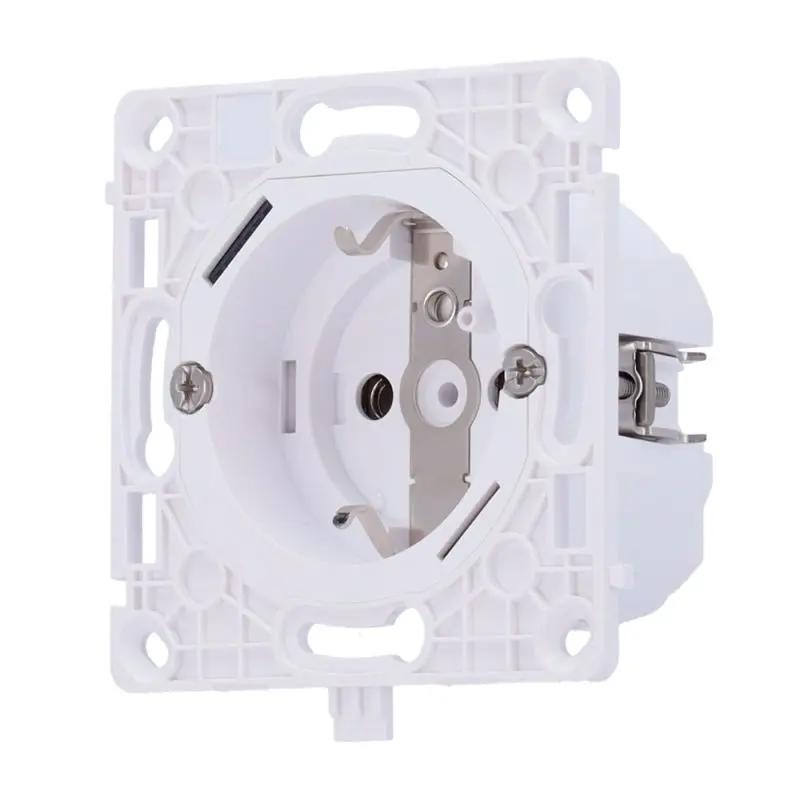

Ajax OutletCore (smart) [type F] — In-wall smart outlet module with type F (Schuko) socket, energy monitoring and remote switching.
Key features
- Loads up to 3 kW at 230 V
- Adjustable current limit 1–16 A
- Measures current, voltage, power and energy
- Voltage and overheat protection
- Child-protection shutters
- Finished with a Solo, Side or Center smart cover
Specifications
| Product line | Comfort & automation · Jeweller wireless |
|---|
| Load | Up to 3 kW at 230 V (resistive), 16 A max |
|---|
| Installation | Wall box, 55 mm frame system, indoor |
|---|
| Communication | Jeweller, two-way, encrypted |
|---|
| Range | Up to 1,100 m to hub or range extender (open space) |
|---|
| Safety | IP20, Class I, child shutters |
|---|
| Colour | White |
|---|
Requires an Ajax hub. Ajax article 72569.165.WH1 · Code AJ-OUTLETCORE-SMART-TF-WH
