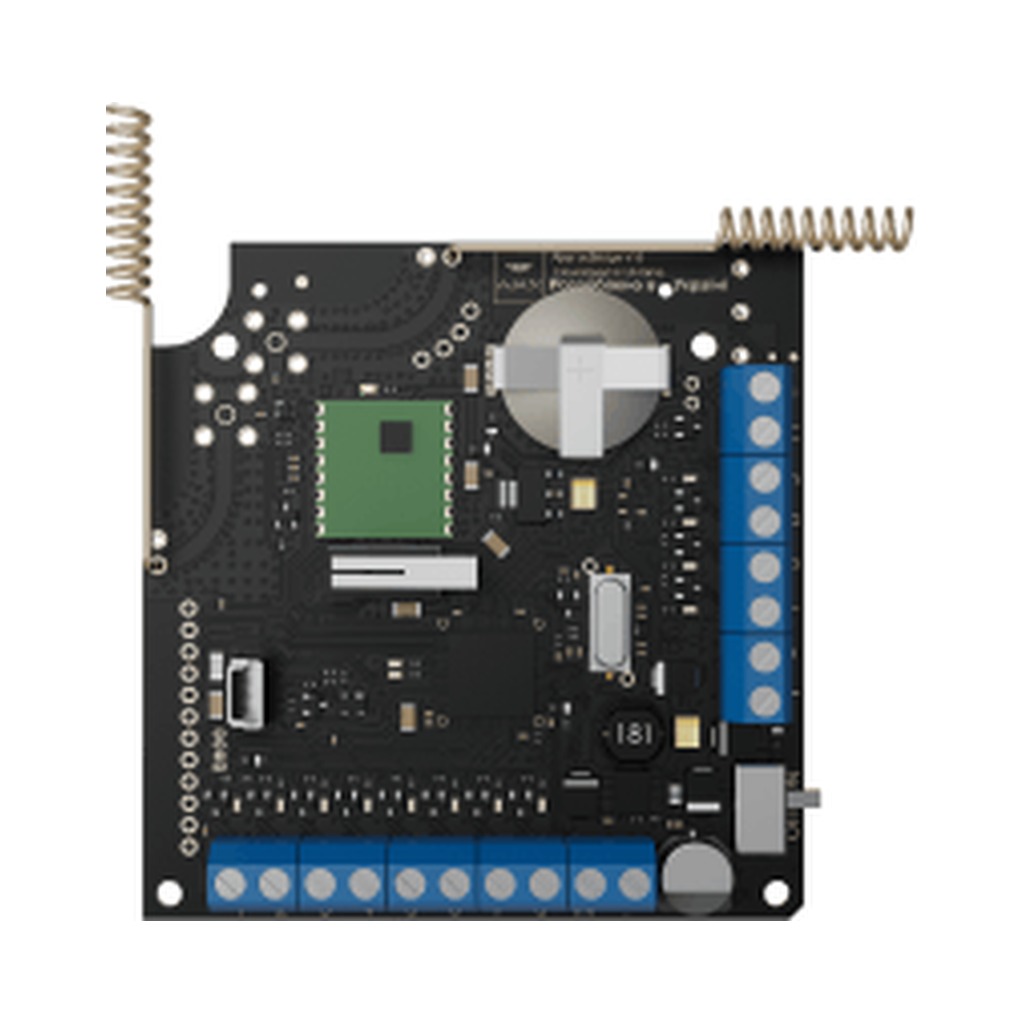

Ajax ocBridge Plus — Receiver module that connects Ajax wireless detectors to a third-party wired or hybrid alarm panel.
Key features
- Up to 99 Ajax wireless detectors
- 8 security and 4 service zones
- Outputs for NO/NC, EOL and 2EOL loops
- Alarm delivered within 0.15 s
- External antenna connection supported
Specifications
| Product line | Baseline · Jeweller wireless |
|---|
| Function | Wireless receiver for third-party panels |
|---|
| Communication | Jeweller (to detectors), wired outputs to panel |
|---|
| Range | Up to 2,000 m (open space) |
|---|
| Power | 8–14 V DC from the panel |
|---|
| Installation | Indoor, 95 × 92 × 18 mm |
|---|
Requires an Ajax hub. Ajax article 7296.14.NC1 · Code AJ-OCBRIDGE-PLUS
