Ajax LightCore (2-gang) — Relay module of the Ajax LightSwitch for two independent lighting circuits, operating without a neutral wire.
Key features
- Two channels, 5–300 W each
- 600 W total load

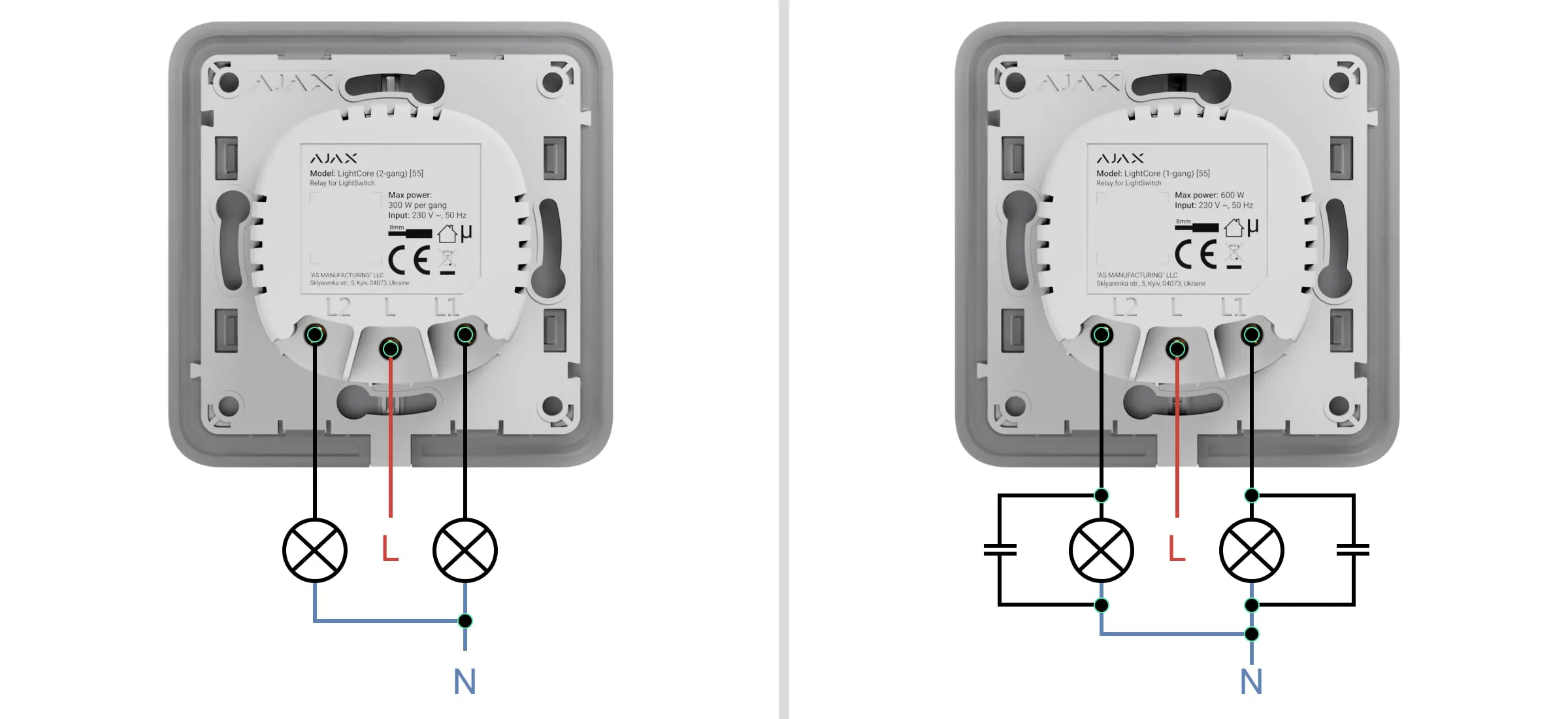

- Works on live wire only, no neutral
- Capacitor included for low-power lamps
- Combine with a 2-gang touch button
Specifications
| Product line | Comfort & automation · Jeweller wireless |
|---|
| Load | 2 channels, 5–300 W each, 230 V |
|---|
| Installation | Wall box under 55 mm frame system, no neutral needed |
|---|
| Communication | Jeweller, two-way, encrypted |
|---|
| Range | Up to 1,100 m to hub or range extender (open space) |
|---|
| Safety | IP20; overcurrent (2.6 A) and overheat protection |
|---|
Requires an Ajax hub. Ajax article 45111.142.NC · Code AJ-LIGHTCORE-2GANG
