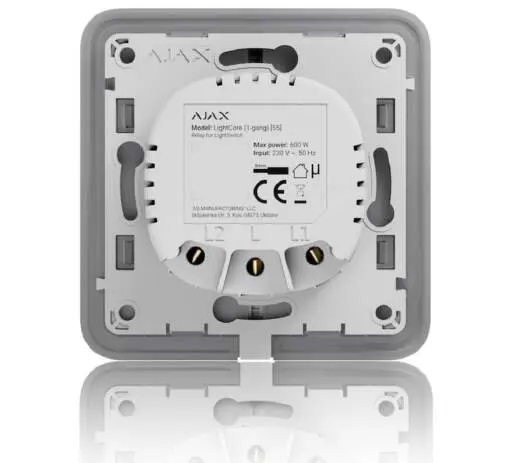

Ajax LightCore (1-gang) — Relay core of the Ajax 1-gang smart light switch; combine with a button and frame of your choice.
Key features
- Touch control reacting from 15 mm
- No neutral wire needed
- Auto switch-off timer and child lock
- Overheating and over-current protection
- Controlled from the Ajax apps and by security scenarios
Specifications
| Product line | Comfort & automation · Jeweller wireless |
|---|
| Load | Lamps 5–600 W (capacitor included for low-power bulbs) |
|---|
| Installation | 55 mm wall box · 25 mm depth · button and frame sold separately |
|---|
| Communication | Jeweller, two-way, encrypted |
|---|
| Range | Up to 1,100 m in open space |
|---|
| Safety | Alert above 60 °C · current protection |
|---|
Requires an Ajax hub. Ajax article 45110.142.NC · Code AJ-LIGHTCORE-1GANG
