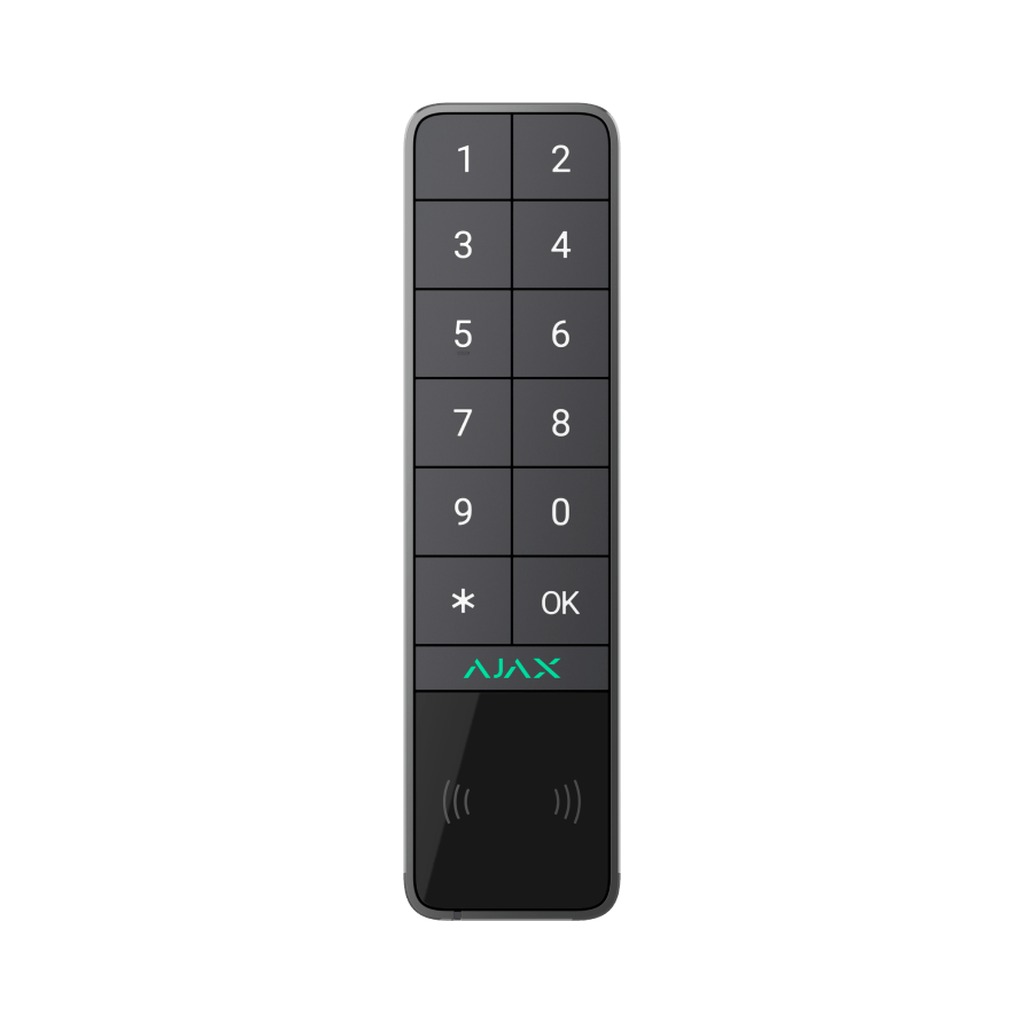

Ajax KeyPad Outdoor — Wireless outdoor keypad for security control using codes, Pass cards, Tag fobs or a smartphone.
Key features
- Codes, Tag, Pass or smartphone via Bluetooth
- Duress codes and two-factor authorization
- Function button for panic or fire mute
- Optional 12 V external power with battery backup
- IP66 and IK08 rated enclosure
Specifications
| Product line | Baseline · Jeweller wireless |
|---|
| Type | Outdoor keypad with contactless reader (DESFire EV1/EV2/EV3) |
|---|
| Communication | Jeweller |
|---|
| Range | Up to 1,700 m (open space) |
|---|
| Power | 2 × CR123A, up to 2 years; optional 10.5–14 V DC |
|---|
| Protection | IP66, IK08, tamper |
|---|
| Colour | Graphite |
|---|
Requires an Ajax hub. Ajax article 99969.286.GP1 · Code AJ-KEYPAD-OUT-GP
