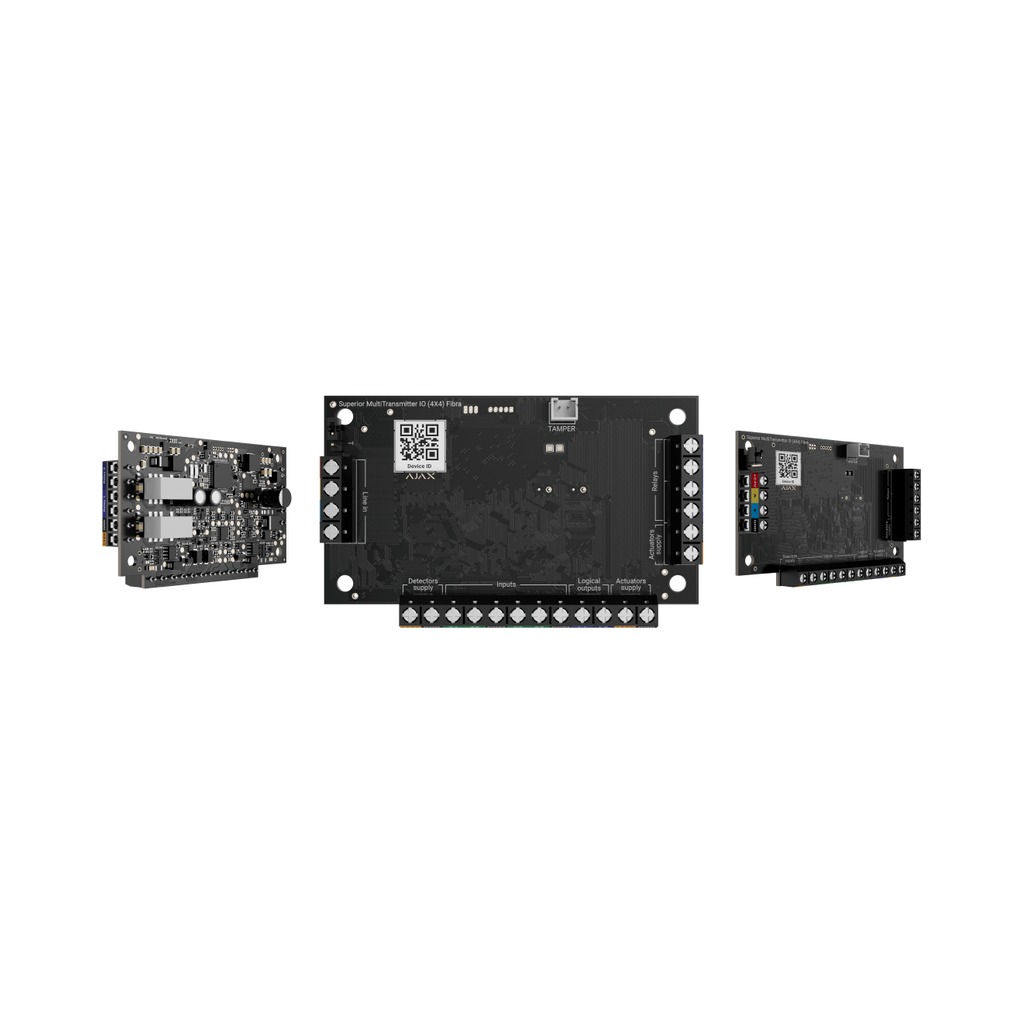

Ajax Superior MultiTransmitter IO (4X4) Fibra — Wired integration module with 4 inputs and 4 outputs for connecting third-party sensors, locks and actuators.
Key features
- 4 inputs: NO, NC, EOL, 2EOL, 3EOL, roller shutter
- 2 relays (1 A) and 2 logic outputs
- Control of electric locks and blocking elements
- KeyArm input for arming and disarming
- Supplies 12 V up to 500 mA to connected devices
Specifications
| Product line | Superior · Fibra wired |
|---|
| Function | 4-input / 4-output integration module |
|---|
| Communication | Fibra (4-core cable) |
|---|
| Range | Fibra line up to 2,000 m; wired inputs up to 400 m |
|---|
| Power | From the hub via Fibra line, 12–28 V DC |
|---|
| Installation | Indoor, in Ajax Case (sold separately) |
|---|
Requires an Ajax hub. Code AJ-FIB-MTRANS-4X4-4
